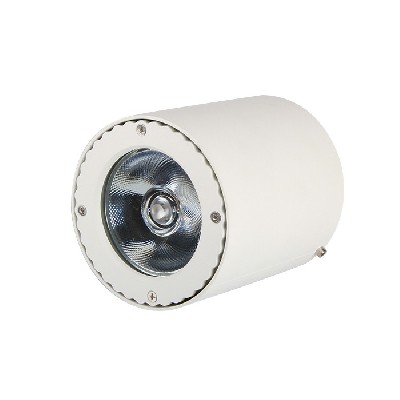

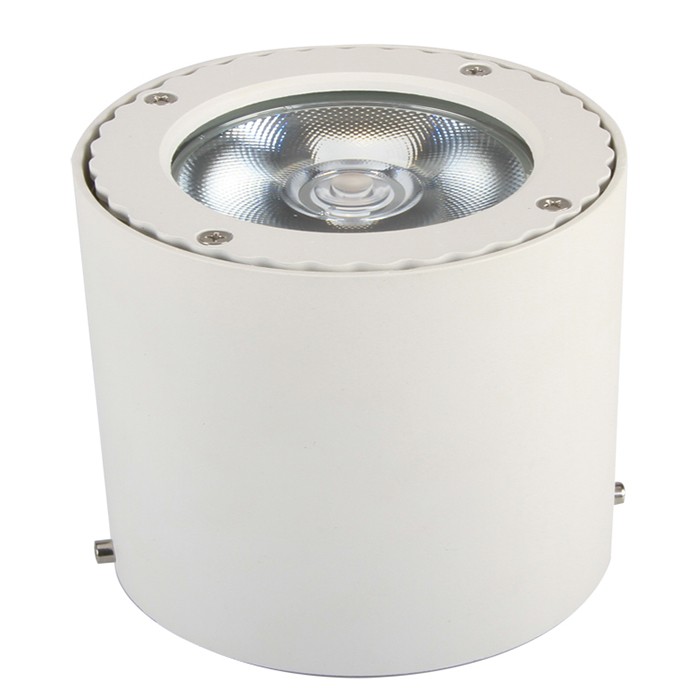

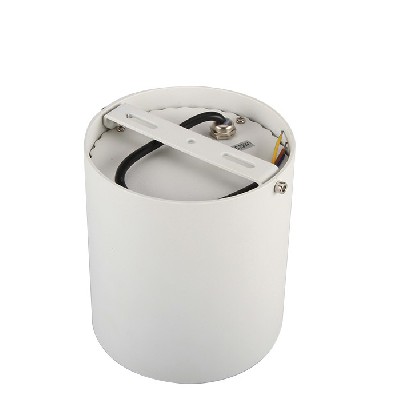

LED tube lamp GMFSTD003
2019-05-23 673
Place of Origin | Zhongshan | Model | GMFSTD003 | Specifications | Φ135*H150MM |
| brand | BASUN/Wide Beauty | input voltage | AC85-265V | Output current | 280mA ±5% |
| power | 20W | light source | San an | colour | W/WW |
Protection level | IP65 | Luminous angle | 12°24°36° | Application scope | Products are used in bridges, hotels, buildings, parks, squares and lakeside parks, etc. |
Remarks | Waterproof lamp | IES | New time | 2019.4 |
Place of Origin | Zhongshan | Model | GMFSTD001 | Specifications | Φ105*H150MM |
| brand | BASUN/Wide Beauty | input voltage | AC85-265V | Output current | 280mA ±5% |
| power | 10W | light source | San an | colour | W/WW |
Protection level | IP65 | Luminous angle | 12°24°36° | Application scope | Products are used in bridges, hotels, buildings, parks, squares and lakeside parks, etc. |
| Remarks | Waterproof lamp | IES | New time | 2019.4 |
Place of Origin | Zhongshan | Model | GMFSTD002 | Specifications | Φ105*H150MM |
| brand | BASUN/Wide Beauty | input voltage | AC85-265V | Output current | 280mA ±5% |
| power | 6*2W | light source | Crystal element | colour | W/WW |
Protection level | IP65 | Luminous angle | 25°45°60° | Application scope | Products are used in bridges, hotels, buildings, parks, squares and lakeside parks, etc. |
| Remarks | Waterproof lamp | IES | New time | 2019.4 |
